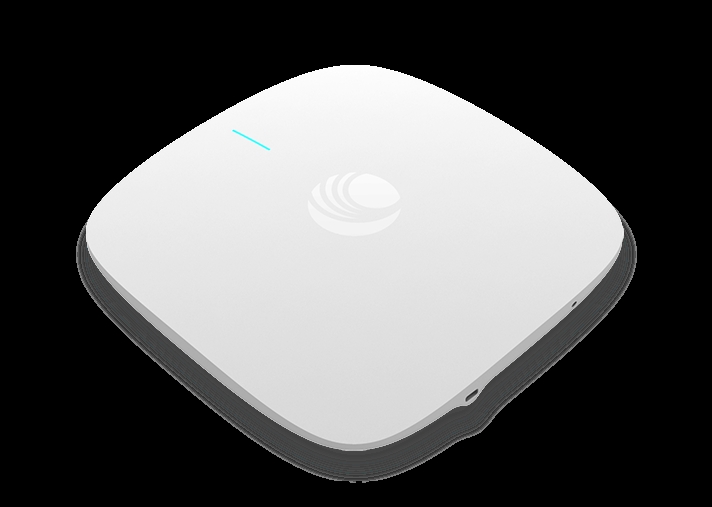

Bộ Phát Wifi Cambium e410 (PL-E410X00B-RW)

TECHNICAL SPECIFICATIONS

Standards

IEEE 802.11a/b/g/n/ac Wave2

Antenna

2x2:2 MU-MIMO

Beamforming

Supported

Channel Width

20MHz, 40MHz, 80MHz

Concurrent Clients

256

Max Data Rates

2.4GHz : 400Mbps 5GHz : 867Mbps

SSID

16 SSIDs across 2 radios

Frequency Bands

2.400 to 2.2484 GHz

5.150 to 5.250 GHz

5.250 to 5.350 GHz

5.470 to 5.725 GHz

5.725 to 5.850 GHz

Power Supply

802.3af PoE Injector, or PoE switch powered

Dimensions

17.0 x 17.0 x 4.1 cm (6.7 x 6.7 x 1.61 Inch)

Weight

384 g (0.86 lb)

Operating Temperature

0°C to +50°C (+32°F to +122°F)

WI-FI FEATURES

Management Modes

cnMaestro cloud managed

cnMaestro on-premises VM controller managed

Autopilot (AP as controller for up to 32 AP network)

Standalone with AP GUI (http/https), CLI (telnet/ssh)

RF Management

AutoRF automatically manages channel and power

Guest Access Captive Portal

cnMaestro Controller Portal

Integrates with 3rd party Guest Access Portals

Built-in Portal on AP

LDAP & RADIUS authentication

Walled Garden with DNS whitelist

MAC Authentication

On-AP MAC filtering list.

On-Controller MAC filtering list.

RADIUS MAC Authentication.

MAC Authentication fallback to Captive Portal

Firewall

Layer-2, Layer-3 and DNS ACL. DoS Protection.
