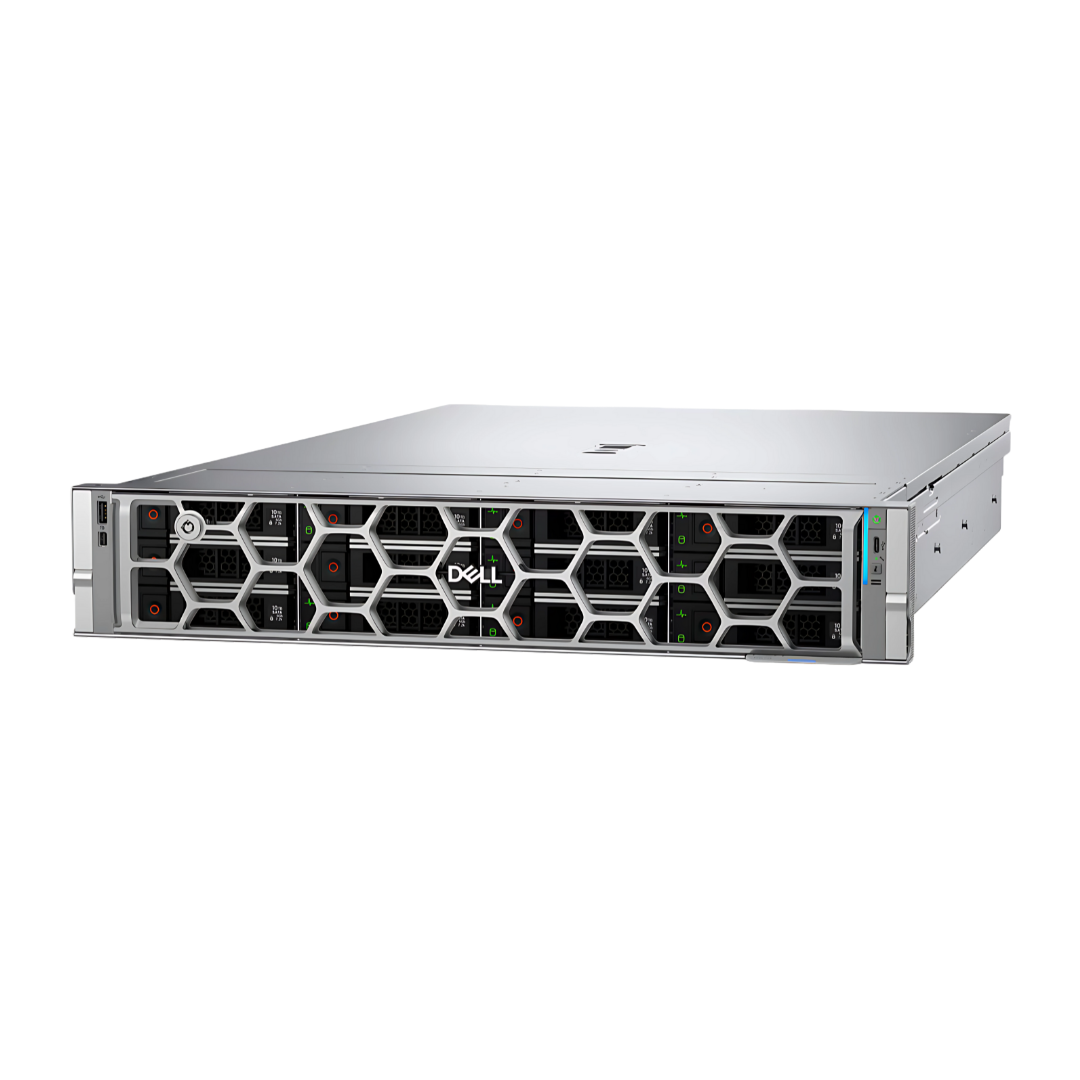

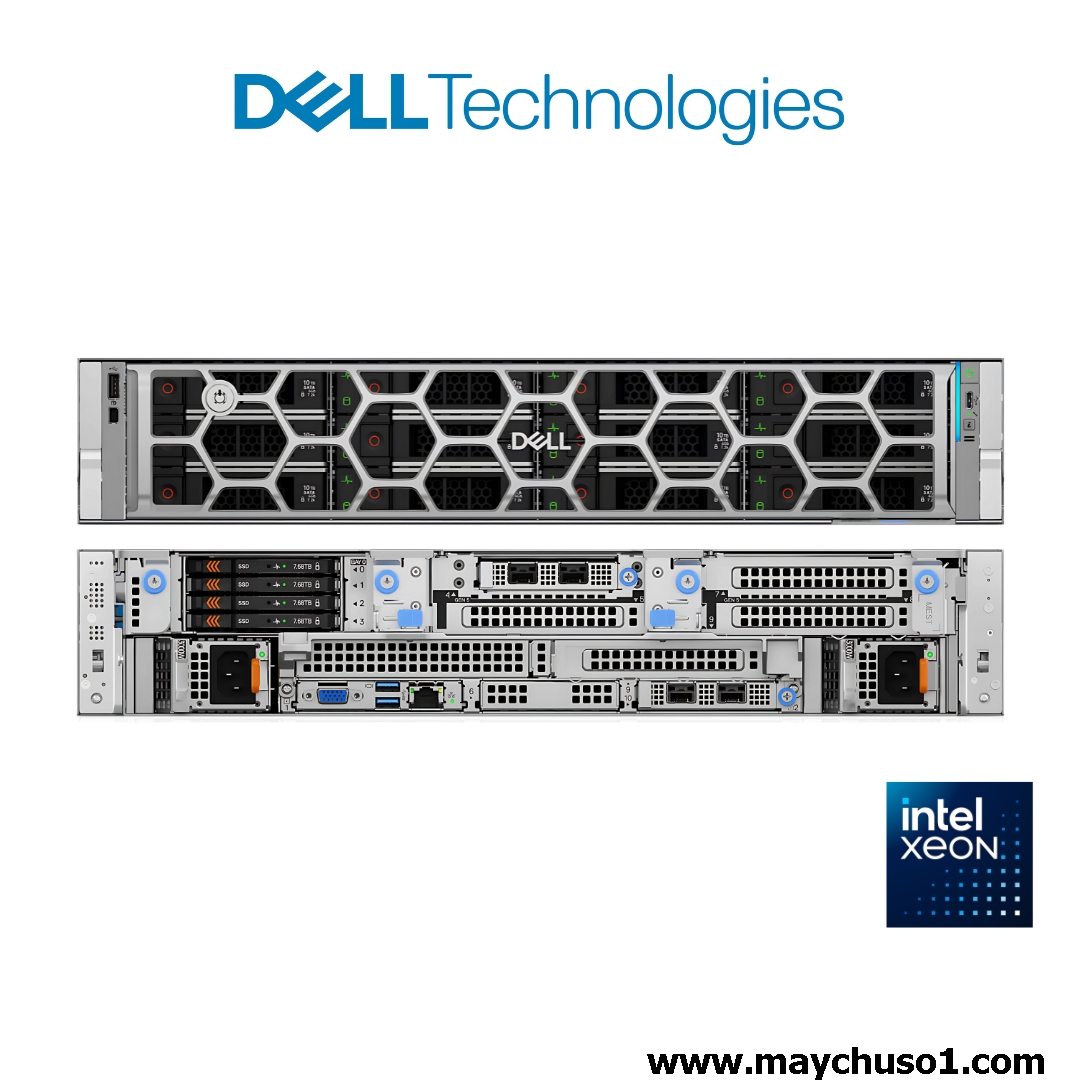

Dell PowerEdge R570 Intel® Xeon® 6 Efficient 6731E 32GB PERC H365i Controller

• One Intel® Xeon® 6 E-core processor with up to 144 cores

• One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option

• 16 DDR5 DIMM slots, speeds up to 6400 MT/s
• One Intel® Xeon® 6 E-core processor - supports RDIMM 1 TB max
• One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4 TB max*
• Supports registered ECC DDR5 DIMMs only Supports registered ECC DDR5 DIMMs only

• Internal Controllers (RAID): PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB
• External Controllers: PERC H965e, HBA 465e

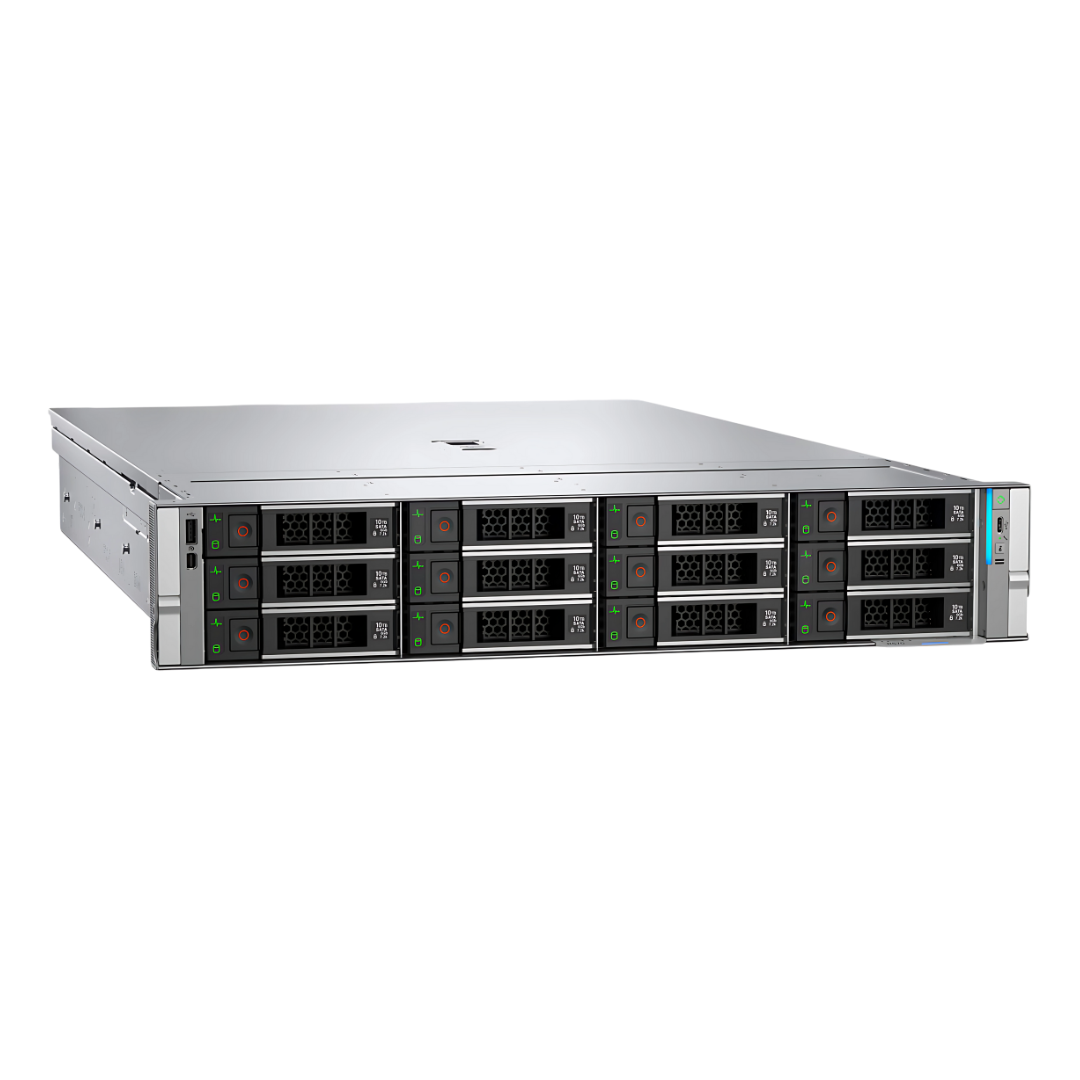

Front bays:

• Up to 12 x 3.5-inch SAS (HDD) RAID max 288 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD) RAID max 288 TB
• Up to 8 x 2.5-inch NVMe RAID max 122.88 TB
• Up to 8 x 2.5-inch NVMe max 122.88 TB
• Up to 8 x 2.5-inch SAS/SATA max 30.72 TB
• Up to 8 x 2.5-inch SAS/SATA/Universal max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA RAID max 61.44 TB
• Up to 24 x 2.5-inch SAS4/SATA max 92.16 TB*
• Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 122.88 TB
• Up to 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe 122.88 TB
• Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 245.76 TB
• Up to 16 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 245.76 TB
• Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB

Rear bays:

• Up to 4 x EDSFF E3.S Gen5 NVMe max 61.44 TB

• 800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1500 W 277 Vac and HVDC Titanium, hot swap redundant*
• 1400 W -48 VDC, hot swap redundant*
• 1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant*

• Height – 86.8 mm (3.42 inches)
• Width – 482.0 mm (18.98 inches)
• Depth – 802.38 mm (31.59 inches) with bezel
• Depth – 801.49 mm (31.55 inches) without bezel
• Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (32.06 inches) without bezel

Note: Front I/O configuration will not have a bezel.

• iDRAC
• iDRAC Direct
• iDRAC RESTful API with Redfish
• RACADM CLI
• iDRAC Service Module (iSM)

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase

• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection

Front Ports:

• 1 x USB 2.0 Type-C (HOST/BMC Direct)
• 1 x USB 2.0 Type-A (optional LCP - Secondary KVM)
• 1 x Mini DisplayPort (optional LCP - Secondary KVM)
• 1 x DB9 Serial (with front I/O configuration)
• 1 x Dedicated BMC Ethernet port (with front I/O configuration)

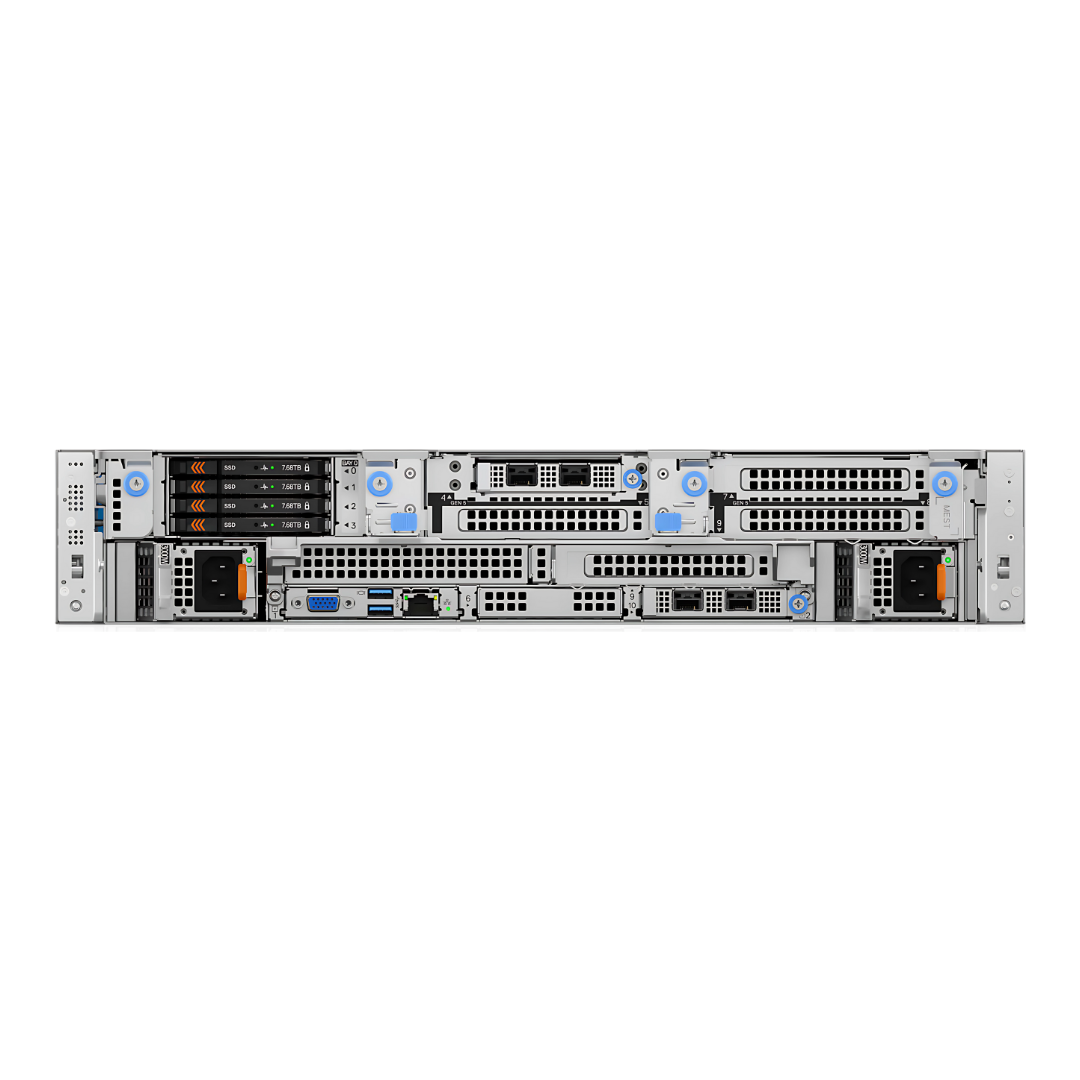

Rear Ports:

• 1 x Dedicated BMC Ethernet port
• 2 x USB 3.1 Type-A
• 1 x VGA

Internal Port

• 1 x USB 3.1 Type-A

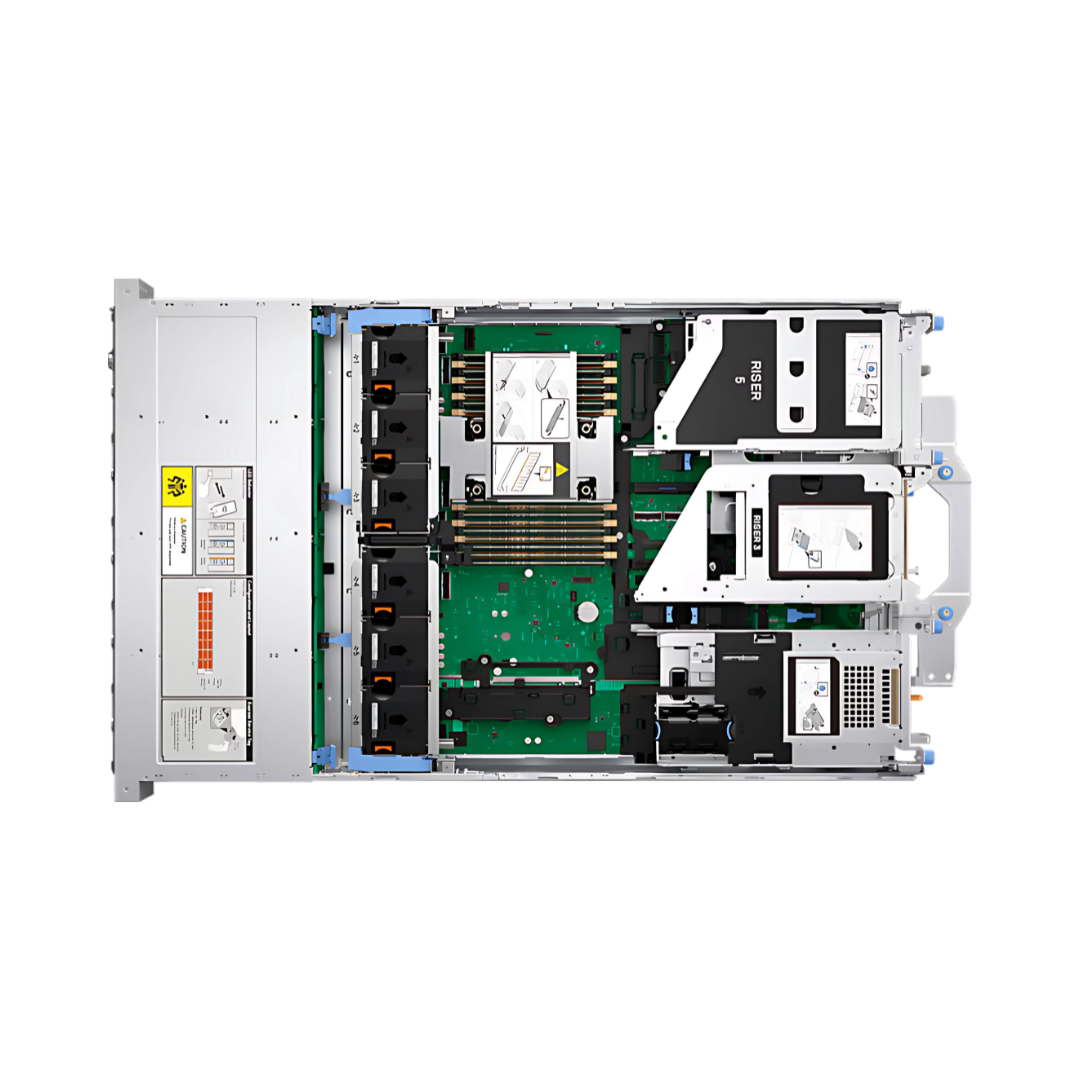

Up to six PCIe slots* (x16 connector)

• Slot 2: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length
• Slot 3: 1 x16 Gen5 Full Height, Half Length
• Slot 4: 1 x16 Gen5 Full Height, Half Length* or 1 x16 Full Height, Full Length or 1 x16 OCP3.0
• Slot 6: 1 x4 Gen4 Boss (optional)
• Slot 7: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length
• Slot 9: 1 x16 Gen5 Full Height, Half Length
• Slot 10: 1 x16 OCP3.0 • Slot 31: 1 x16 Gen5 Full Height, Half Length
• Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 Boss (optional)
• Slot 36: 1 x16 Gen5 Full Height, Half Length
• Slot 38: 1 x16 OCP3.0

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
