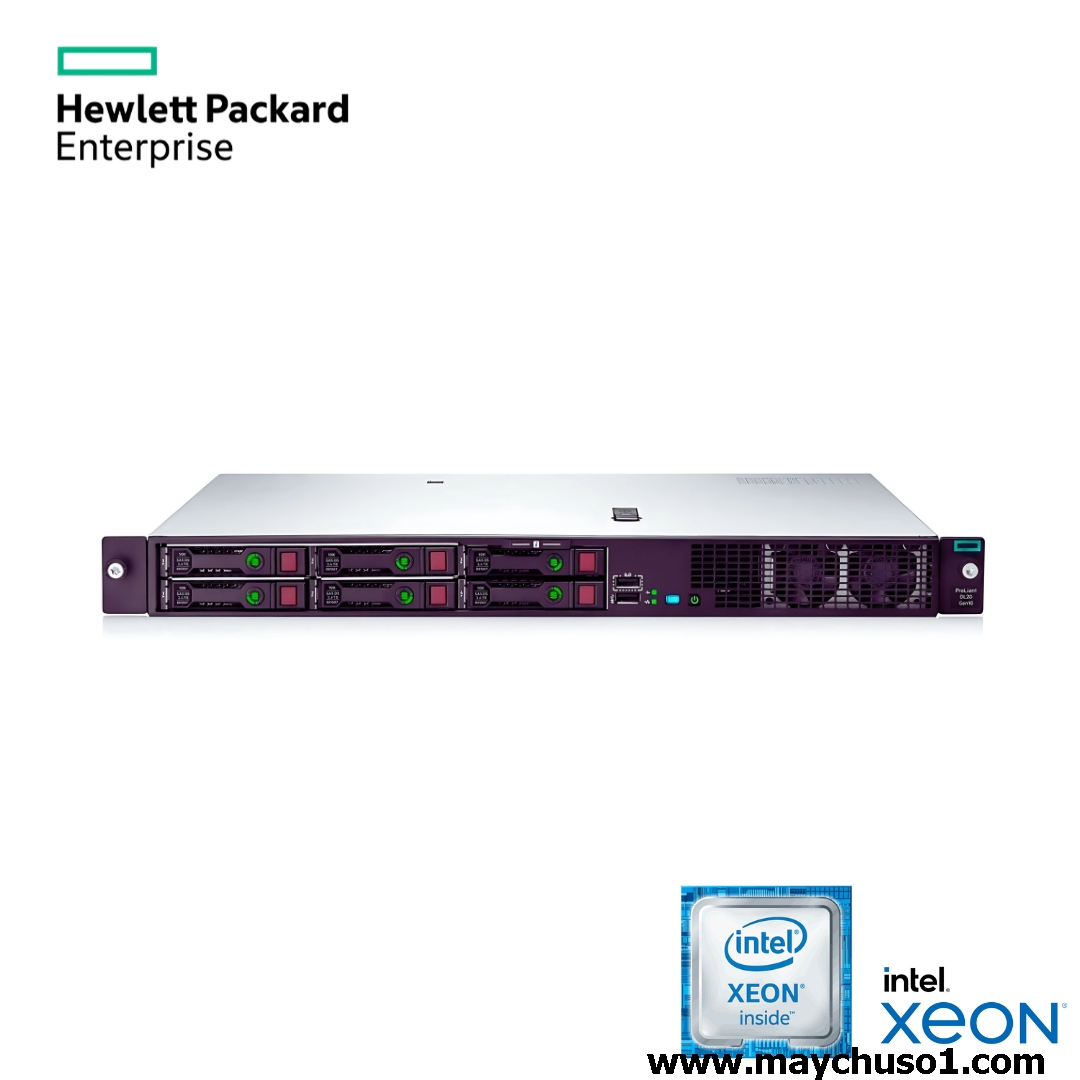

Máy Chủ HPE DL20 G10 E-2234 16GB 4SFF CTO Server

Processor Name (Tên CPU):

Intel Xeon E-2234 (TDP: 71W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

Processor Core Available (Lõi CPU):

Processor Cache Installed (Bộ nhớ đệm CPU):

Standard Memory (Bộ nhớ RAM mặc định):

1 HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Unbuffered St

Hard Drive Number (Số lượng ổ cứng):

OPTIONAL - 4 SFF hot plug drives supported (SATA/SAS/SSD)

Storage Controller (RAID Card

HPE Smart Array S100i SR Gen10 Software RAID

Remote Management Software (Phần mềm quản lý hệ thống):

iLO Management (standard), Intelligent Provisioning (standard), iLO Scale-out (optional only for DL), iLO Advanced (optional)

System Fan Features (Hệ thống quạt tản nhiệt):

3 non hot plug, non-redundant

Power Supply Type (Bộ nguồn

290W Non-redundant Power Supply

Expansion Slots (Khe cắm mở rộng):

2 PCIe 3.0 Slot

Optical Drive (Ổ đĩa quang):

Not Available

Security:

Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Weight (Trọng lượng):

13.18 lb minimum 20.81 lb maximum/ 6 kg minimum 9.46 kg maximum

Product Dimensions (Kích thước W x D x H):

1.70 x 17.11 x 15.05 in/ 4.32 x 43.46 x 38.22 cm

Warranty Standard Satement (Bảo hành tiêu chuẩn):

3 years

Thông số Kỹ Thuật Nâng Cấp

Processor Type:

Intel

Processor Family:

Intel Xeon E-2100 / 2200 series, Intel Core i3, Intel Pentium

Processor Core Available:

2 or 4 or 6 or 8 core, depending on model

Processor Cache Installed: ):

4 - 16 MB L3, depending on processor

Maximum Memory :

64 GB (4 x 16 GB UDIMM @ 2666 MT/s)

Memory Slots: 4 slots :

4 Slot

Memory Type:

HPE DDR4 Unbuffered Memory (UDIMM)

Drive Supported:

2 LFF SAS/SATA/SSD or 4 SFF SAS/SATA/SSD

Storage Controller :

HPE Smart Array S100i (raid: 0,1,5,10) SR Gen10 SW RAID
HPE Smart Array E208i-a (raid: 01,5,10) SR G10 LH Controller
HPE Smart Array P408i-a (raid: 0,1,5,10,50,60)

Network Controller:

HPE Ethernet 1Gb 2-port 361i Adapter
HPE Ethernet 1Gb 2-port 332i Adapter, depending on model

Remote Management :

HPE iLO Standard with Intelligent Provisioning (embedded),
HPE OneView Standard (requires download); Optional - HPE iLO Advanced,
HPE OneView Advanced (require licenses)

System Fan Features (Hệ thống quạt tản nhiệt):

Non-hot plug, non-redundant

Expasions Slots:

2 for detailed description refer to QuickSpecs.

Operating Systems and Virtualization Software

Windows Server 2019- 2016,
VMware vSphere 6.7- 6.5 U3 -7.0,
Red Hat Enterprise Linux (RHEL) 8.0 - 7.6,
SUSE Linux nterprise Server (SLES) 15 and 12 SP3

Warranty Standard Statement :

Server Warranty includes 3years
