DL380 Gen11

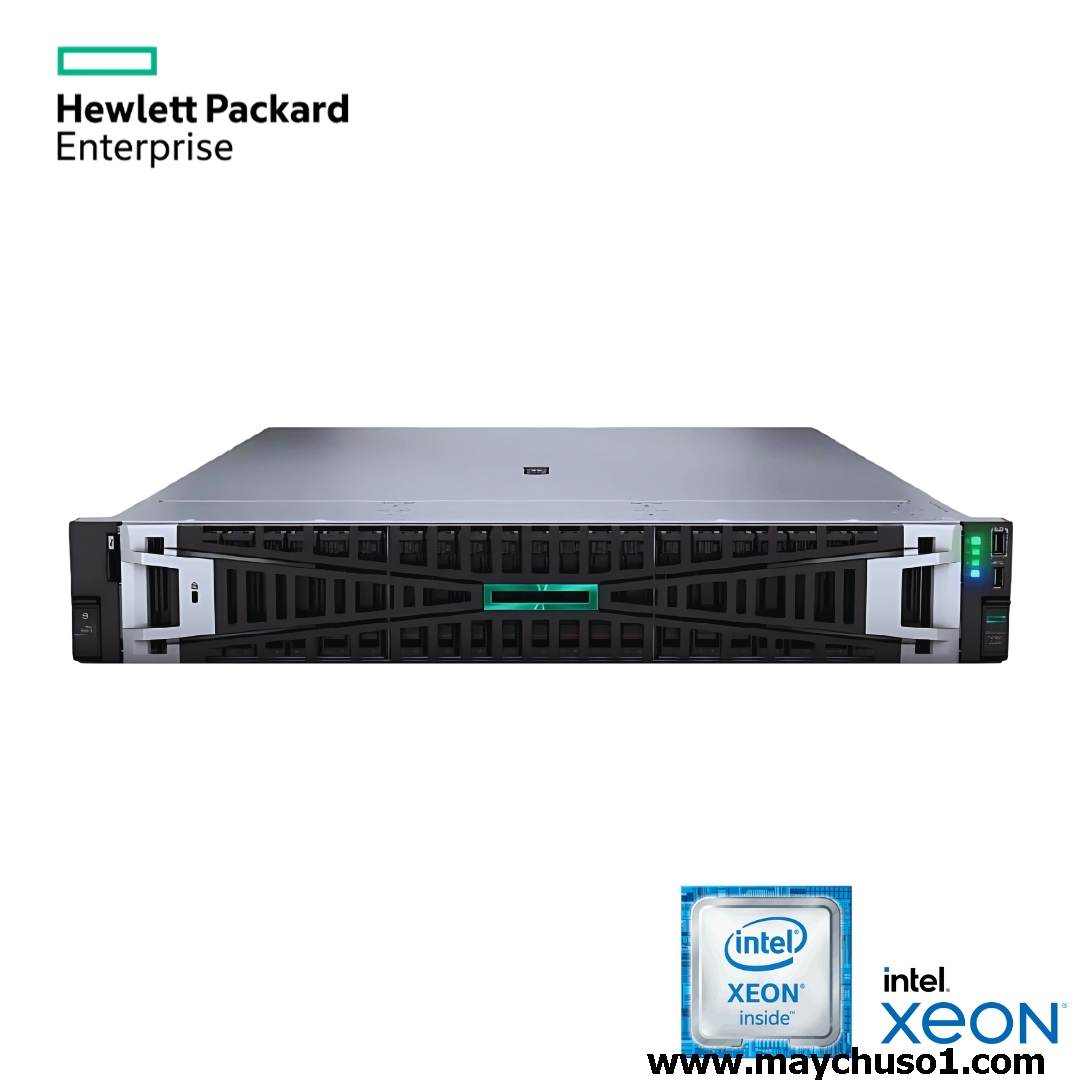

    HPE ProLiant DL380 Gen11 Intel Xeon-Silver 4514Y 32G 8SFF

    [ Part number: P52534-B21 ]

    Intel Xeon-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE

    32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8

    Cấu hình thêm ...

    MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM

    Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

    800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

    Giá: Liên hệ

HPE ProLiant DL380 Gen11 8SFF CTO Server

Processor Name (Tên CPU):

Intel® Xeon® Silver 4514Y (TDP: 150W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

2.0 GHz - 3.40 GHz

Processor Core Available (Lõi CPU):

16 Cores - 32 Threads

Processor Cache Installed (Bộ nhớ đệm CPU):

30 MB L3

Standard Memory (Bộ nhớ RAM mặc định):

64 GB DDR5-5600 ECC RDIMM (2 × 32 GB HPE Smart Memory)

Hard Drive Number (Số lượng ổ cứng):

8 × SFF U.3 drive bays; no data drives included

Storage Controller (RAID Card)

HPE MR416i-o Gen11, PCIe x16, 8 GB cache, OCP, SPDM; includes an HPE 96W Smart Storage Lithium-ion Battery
Boot Storage HPE NS204i-u Gen11 NVMe Hot-Plug Boot Optimized Storage Device; SSD capacity is not specified in the provided list

Network Controller:

BCM 5719 OCP3 Adapter - 4 x 1GbE BASE-T RJ45
Interfaces 1 × optional serial port (rear)
1 × VGA port (rear)
1 × dedicated HPE iLO management port (rear)
1 × iLO service port
5 × USB 3.2 Gen 1 ports (1 front, 2 rear, 2 internal)

Remote Management Software
(Phần mềm quản lý hệ thống):

* Standard: HPE iLO 6 Standard with embedded Intelligent Provisioning; HPE OneView Standard (download required)
* Advanced: HPE iLO Advanced and HPE OneView Advanced are optional and require separate licenses

System Fan Features
(Hệ thống quạt tản nhiệt):

1 × HPE DL380/DL560 Gen11 2U High Performance Fan Kit

Power Supply Type (Bộ nguồn)

2 × HPE 800W Flex Slot Platinum Hot-Plug Low Halogen Power Supply Kits
Heat Sink 1 × HPE ProLiant DL380/DL560 Gen11 High Performance 2U Heat Sink Kit

Expansion Slots
(Khe cắm mở rộng):

Depends on riser configuration; slot count not specified in the provided BOM

Optical Drive (Ổ đĩa quang):

Not Available

Weight (Trọng lượng):

16 kg ( 35.27 lb) minimum
33 kg ( 72.75 lb) maximum

Product Dimensions
(
Kích thước H x W x D):

8.75 × 44.8 × 72.7 cm
3.44 × 17.64 × 28.62 in

Form Factor (Hình dáng bên ngoài):

2U rack

Warranty Standard Satement
(Bảo hành tiêu chuẩn):

3 năm

Quý khách đặt hàng
Vui lòng liên hệ Cty CP Công Nghệ NMS®
Hotline: 028.7100.8600 - Email: sales@nmsvn.com

Thông số Kỹ Thuật Nâng Cấp

Processor Type:

5th Generation Intel® Xeon® Scalable Processors

Processor Family:

Intel® Xeon® Silver

Processor Core Available:

12 to 32 core

Processor Cache Installed: ):

30 MB L3 cache

Maximum Memory :

Up to 4 TB with 1 CPU; 8 TB with 2 CPUs

Memory Slots:

32 DIMM slots total; 16 usable with 1 CPU installed

Memory Type:

HPE DDR5-5600 ECC Registered Smart Memory (RDIMM)

Drive Supported:

8 × SFF U.3 Tri-Mode drive bays; no data drives included

Storage Controller :

HPE MR416i-o Gen11 Tri-Mode RAID Controller, PCIe x16, 8 GB cache (OCP, SPDM)
OCP Enablement Kit: HPE ProLiant DL360 Gen11 CPU1-to-OCP2 x8 Enablement Kit (listed in the provided BOM)

System Fan Features (Hệ thống quạt tản nhiệt):

HPE DL380/DL560 Gen11 2U High Performance Fan Kit

Operating Systems
and Virtualization Software

  • Microsoft Windows Server
  • VMware ESXi
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Canonical Ubuntu
  • Oracle Linux and Oracle VM
  • Citrix
