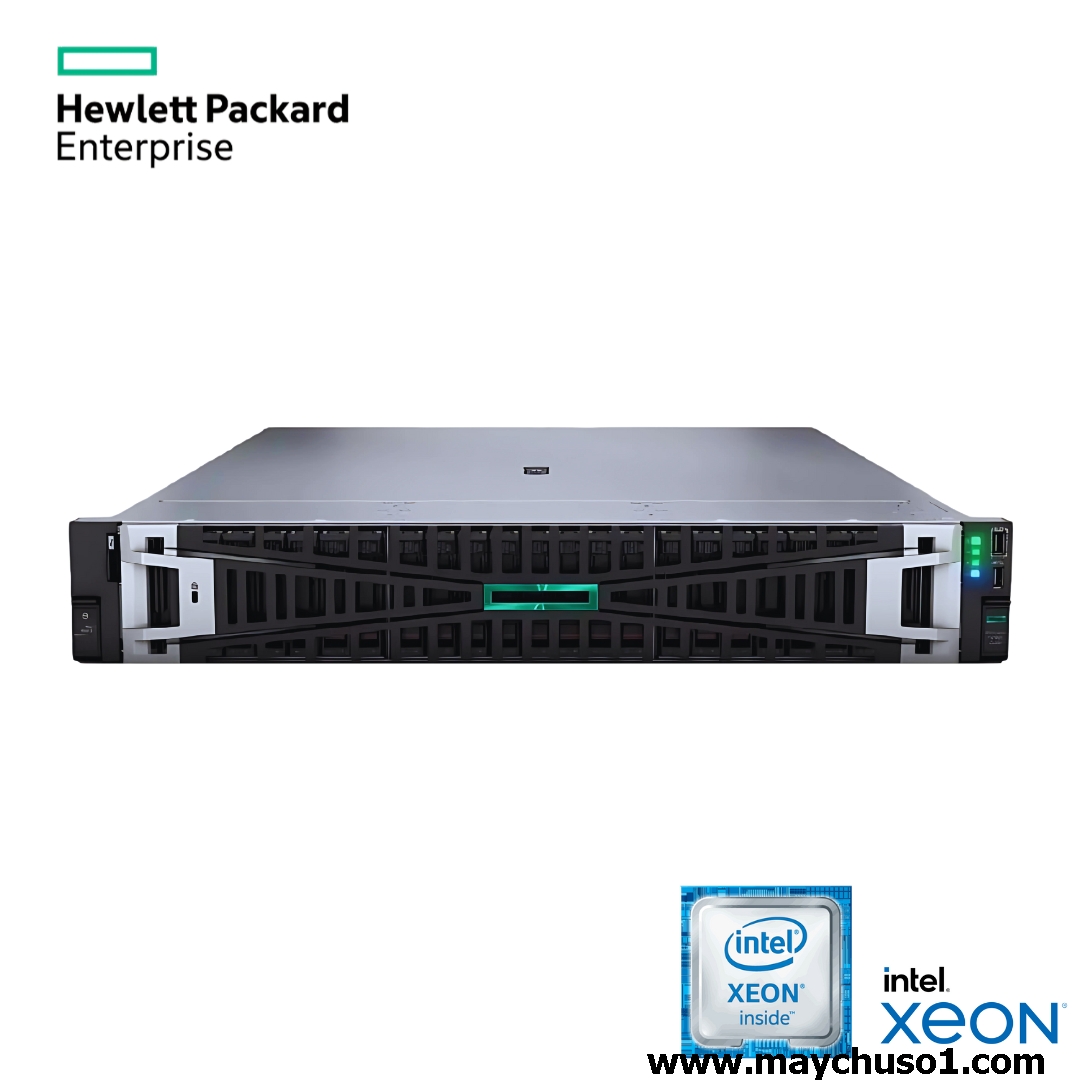

Máy Chủ HPE DL380 G10 Plus S4314 32G 8SFF CTO

Processor Name (Tên CPU):

Intel Xeon Scalable Silver 4314 (TDP: 135 W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

Processor Core Available (Lõi CPU):

12 Cores / 24 Threads

Processor Cache Installed (Bộ nhớ đệm CPU):

24 MB L3

Standard Memory (Bộ nhớ RAM mặc định):

Storage Controller (RAID Card)

System Fan Features
(Hệ thống quạt tản nhiệt):

5 single rotor hot-plug fans

Hard Drive Number (Số lượng ổ cứng):

optional - 8 bay 2.5inch HDD/SSD Sata/Sas SFF drives supported

Network Controller:

Remote Management Software
(Phần mềm quản lý hệ thống):

* Standard (Bản tiêu chuẩn): HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
* Advanced (Bản nâng cao): Optional - HPE iLO Advanced and HPE OneView Advanced (requires licenses)

Power Supply Type (Bộ nguồn)

Expansion Slots
(Khe cắm mở rộng):

2x PCIe 3.0

Optical Drive (Ổ đĩa quang):

Not Available

Weight (Trọng lượng):

28.74lb minimum, 35.86lb maximum
13.04kg minimum, 16.27kg maximum

Product Dimensions
(Kích thước H x D x W):

1.69 x 17.11 x 27.83 inch
4.29 x 43.46 x 70.7 cm

Form Factor (Hình dáng bên ngoài):

2 U rackmount

Warranty Standard Satement
(Bảo hành tiêu chuẩn):

Processor Type:

Intel

Processor Family:

Intel Xeon Scalable 8100/8200 6100/6200 5100/5200 4100/4200 3100/3200 series

Processor Core Available:

4 to 28 core, depending on model

Processor Cache Installed: ):

8.25 - 38.50 MB L3, depending on processor

Maximum Memory :

3.0TB with 128GB DDR4; 6.0TB with HPE 512GB 2666 Persistent Memory Kit

Memory Slots:

24 Slot

Memory Type:

HPE DDR4 Smart Memory and HPE Persistent Memory, depending on model

Drive Supported:

8SFF SAS/SATA, 8SFF SAS/SATA + 2 NVMe, 10SFF SAS/SATA, 1SFF or 1 Dual UFF rear drive optional depending on model

Storage Controller :

HPE Smart Array S100i(raid :0,1,5,10) SR Gen10 SW RAID
and/or HPE Smart Array E208i-a(raid :01,5,10) SR G10 LH Controller
and/or HPE Smart Array P408i-a(0,1,5,10,50,60)

Network Controller:

Embedded 4 x 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model

Remote Management :

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional - HPE iLO Advanced, and HPE OneView Advanced (require licenses)

System Fan Features (Hệ thống quạt tản nhiệt):

Hot-Plug redundant standard

DL380 G11 quickspecs:

Operating Systems and Virtualization Software

Windows Server 2019- 2016,VMware vSphere 6.7- 6.5 U3 -7.0, Red Hat Enterprise Linux (RHEL) 8.0 - 7.6, SUSE Linux nterprise Server (SLES) 15 and 12 SP3
