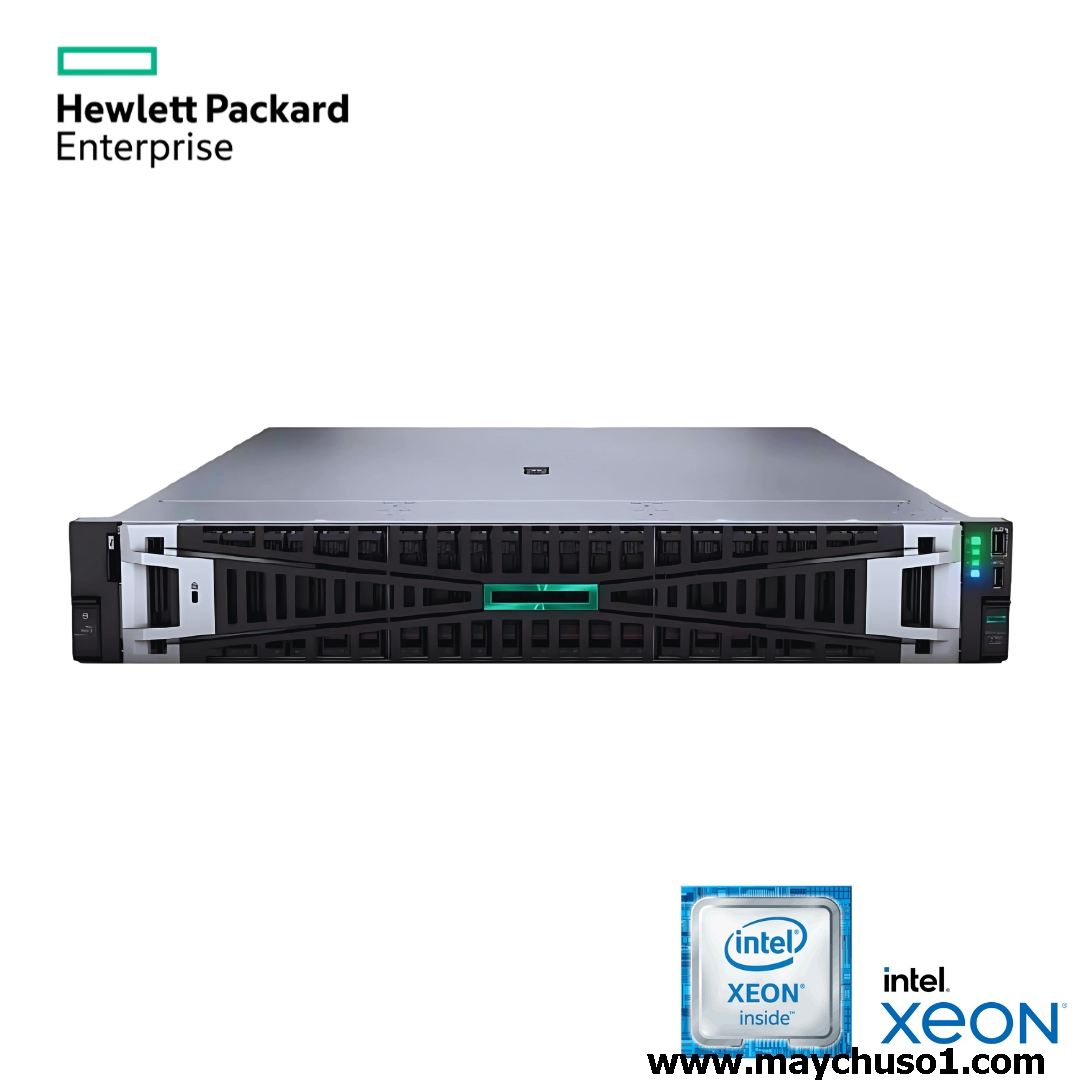

Máy Chủ HPE DL380 G10 8SFF G5220 CTO Server

HPE PROLIANT DL380 G10 8SFF G5220 CTO SERVER

Processor Name (Tên CPU):

 Intel Xeon Scalable Gold 5220 (125W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

2.2GHz

Processor Core Available (Lõi CPU):

18 cores

Processor Cache Installed (Bộ nhớ đệm CPU):

24.75  MB L3

Standard Memory (Bộ nhớ RAM mặc định):

HPE 32GB (1x32GB) 2Rx4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

Hard Drive Number (Số lượng ổ cứng):

optional - 8SFF drives supported (SATA/SAS/SSD)

Storage Controller (RAID Card

HPE Smart Array P408i-p SR Gen10 (Raid 0,1,5,10,50,60) (8 Internal Lanes/ 2GB Cache) 12G SAS PCIe Plug-in Controller and HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

Network Controller:

HPE Ethernet 1Gb 4-port 366FLR Adapter

Remote Management Software (Phần mềm quản lý hệ thống):

* Standard (Bản tiêu chuẩn): HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
* Advanced (Bản nâng cao): Optional - HPE iLO Advanced and HPE OneView Advanced (requires licenses)

System Fan Features (Hệ thống quạt tản nhiệt):

Standard – fan types included

Power Supply Type (Bộ nguồn

2x HPE 500W Flex Slot Platinum hot-plug power supply

Expansion Slots (Khe cắm mở rộng):

2 PCIe 3.0

Optical Drive (Ổ đĩa quang):

Not Available

Weight (Trọng lượng):

32.06lb minimum/ 14.76kg minimum

Product Dimensions (Kích thước W x D x H):

44.55 x 73.03 x 8.74 cm

Form Factor (Hình dáng bên ngoài):

2 U

Warranty Standard Satement (Bảo hành tiêu chuẩn):

3 năm

Processor Type:

Intel

Processor Family:

Intel Xeon Scalable 8100/8200 6100/6200 5100/5200 4100/4200 3100/3200 series

Processor Core Available:

4 to 28 core, depending on model

Processor Cache Installed: ):

8.25 - 38.50 MB L3, depending on processor

Maximum Memory :

1.54TB with 24 x 64GB RDIMM Bus 2933 MT/s, 3.0TB with 24 x 128GB LRDIMM Bus 2933 MT/s

Memory Slots: 4 slots :

24 Slot

Memory Type:

HPE DDR4 Smart Memory and HPE Persistent Memory, depending on model

Drive Supported:

8 or 12 LFF SAS/SATA/SSD and 8/ 10/ 16/ 18 or 24 SAS/SATA/SSD

Storage Controller :

HPE Smart Array S100i(raid :0,1,5,10) SR Gen10 SW RAID and/or HPE Smart Array E208i-a(raid :01,5,10) SR G10 LH Controller and/or HPE Smart Array P408i-a(0,1,5,10,50,60)

Network Controller:

Embedded 4 x 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model

Remote Management :

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional - HPE iLO Advanced, and HPE OneView Advanced (require licenses)

System Fan Features (Hệ thống quạt tản nhiệt):

Hot-Plug redundant standard

Expasions Slots:

3, for detailed description refer to QuickSpecs (quickspecs).

Operating Systems and Virtualization Software

Windows Server 2019- 2016,VMware vSphere 6.7- 6.5 U3 -7.0, Red Hat Enterprise Linux (RHEL) 8.0 - 7.6, SUSE Linux nterprise Server (SLES) 15 and 12 SP3,Clear OS 7.6,Clear VM 2.0

Warranty Standard Statement :

Server Warranty includes three years

Quý khách đặt hàng
Vui lòng liên hệ Cty CP Công Nghệ NMS®
Hotline: 028.7100.8600 - Email: sales@nmsvn.com
