CPU: Intel Xeon Silver 4316, 3.40 GHz
RAM: 16GB TruDDR4, 3200MHz RDIMM
HDD/SSD: 8x 2.5" SAS/SATA Open bay
PCIe Port: 3 slots Gen3
RAID Controller: RAID 930-8i
Power Supply: 750W Hot-swap Titanium PSU

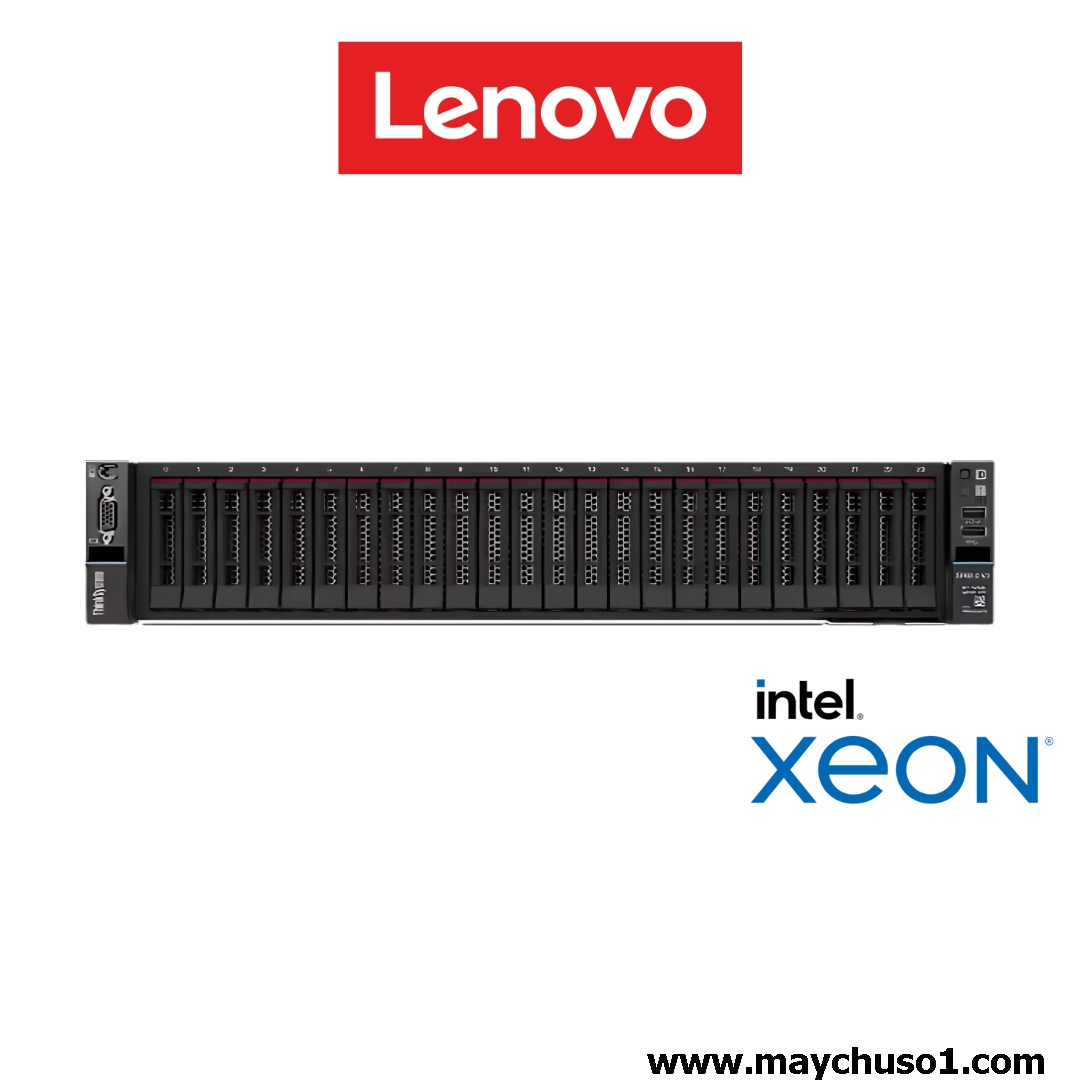

Lenovo ThinkSystem SR650 V2 Silver 4316 8SFF CTO Server |
|
Product | |
Product name | Lenovo ThinkSystem SR650 V2 Server |
Product type | Server |
Physical properties | |
Chassis type | Rack |
Rack units | 2 U |
Dimensions (W x H x D) | 437 mm x 87 mm x 23 mm |
Processor | |
Server category | Dual processor |
Processor family | Intel® Xeon® Scalable Processors |
Processor model | Intel Xeon Silver 4316 |
CPU cores / threads / TDP | 20 / 40 / 150 |
Clock speed | 2.30 GHz - 3.40 GHz (Intel® Turbo Boost Max Technology 3.0) |
CPU Cache | 30 MB L3 (Intel® Smart Cache) |
Storage | |
Compatible storage media | 2.5 inch SAS |
HDD - SDD | Optional |
HDDs (built-in / max.) | 0 / 8 |
Memory | |
RAM | 16 GB |
RAM type | DDR4 |
RAM modules (built in / max.) | 1 / 16 |
RAM (max.) | 4 TB |
Drives | |
Drives | - |
Optical drive bays | - |
Ports | |
Front | 1x USB 3.1 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. |
Rear | 3x USB 3.1 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). |
Internal | 1x USB 3.1 G1 connector for operating system or license key purposes |
Network interface | |
Network interface controller | ThinkSystem Intel I350 1GbE RJ45 4-port OCP Ethernet Adapter |
Operating system | |
Operating system | - |
Supported operating systems |
Microsoft Windows Server 2016, |
Systems management | |
BMC | dual-core ARM Cortex A9 processor |
service | Local management System status with XClarity Mobile Remote management Lenovo XClarity Provisioning Manager Lenovo XClarity Administrator Lenovo XClarity Integrators Lenovo XClarity Essentials Lenovo XClarity Energy Manager Lenovo Capacity Planner |
Features | |
Motherboard chipset | Intel C621A |
RAID controller | RAID 930-8i |
RAID levels | 0, 1, 10, 5, 50, 6, 60 |
Controller chip | LSI SAS3508 |
Fans | |
Fan Option Kit | up to 6x hot-swap fans 60 mm |
Graphics | |
Graphics chip | Matrox G200 |
Performance | |
PSUs (built in / max.) | 1 / 2 |
Effective power (W) | ThinkSystem V2 750W (230V/115V) Platinum Hot-Swap Power Supply v2 |
Includes | |
Includes | Guide rail kit |
Manufacturer’s warranty | 3-year limited on-site service (see manufacturer's website for details) |
