FUJITSU PRIMERGY RX1330 M4 8SFF E-2224 | 8GB DDR4 | SATA/SAS

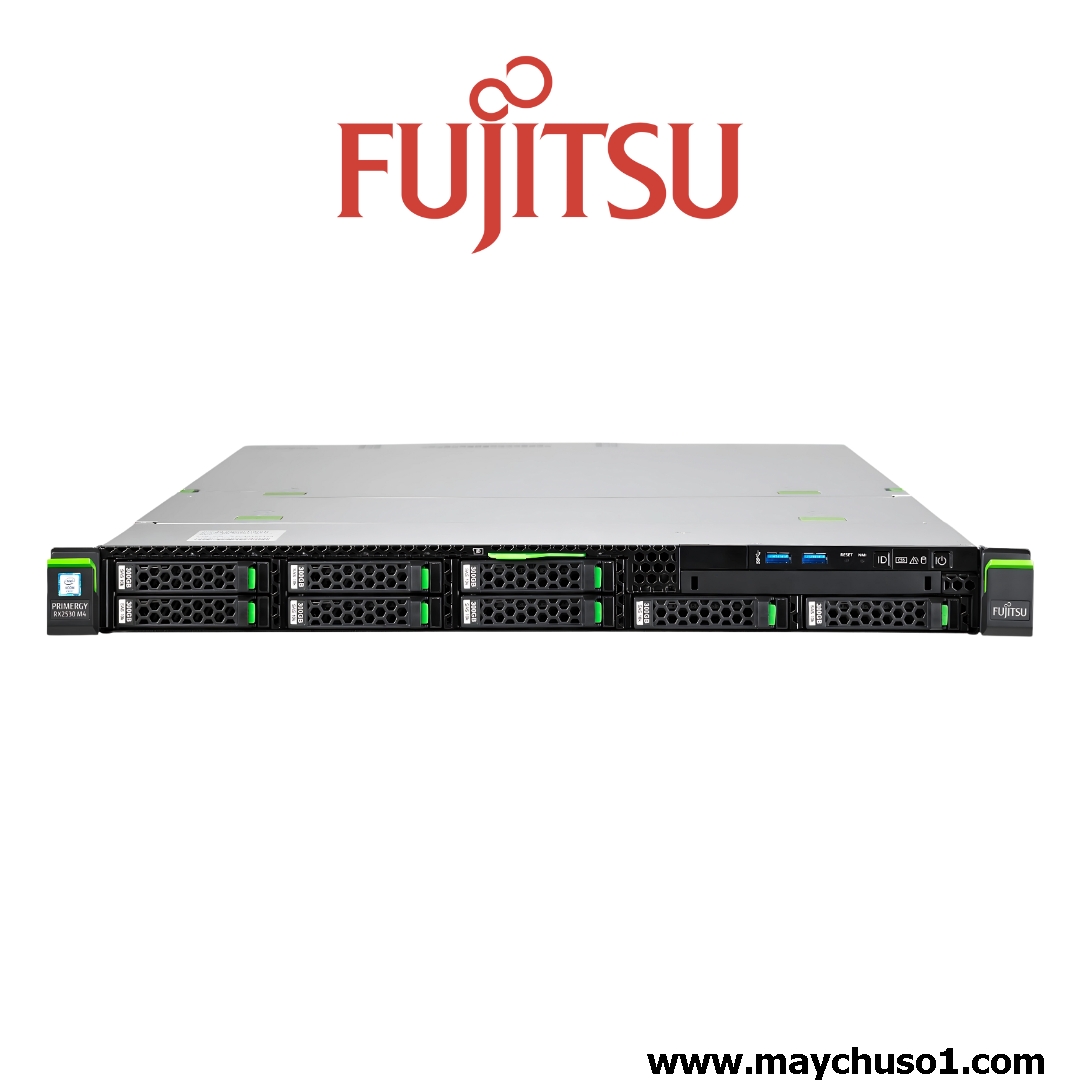

SERVER FUJITSU PRIMERGY RX1330 M4 8SFF

Processor Name (Tên CPU):

Intel Xeon E 2224 (71W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

3.40 GHz

Processor Core Available (Lõi CPU):

4 cores

Processor Cache Installed (Bộ nhớ đệm CPU):

 8 MB L3

Standard Memory (Bộ nhớ RAM mặc định):

8 GB (1Rx8)DDR4 -2666, Unbuffered, ECC  UDIMM

Hard Drive Number (Số lượng ổ cứng):

Optional : 4/8 SFF SATA/SAS HOT-Plug Drive bays

Storage Controller (RAID Card

Onboard 4 port SATA with RAID 0/1 for HDDs

Network Interface (cổng mạng )

2x 1 GB RJ45

Systems management (cổng  quản lý hệ thống):

Infrastructure Manager (ISM)

System Fan Features (Hệ thống quạt tản nhiệt):

4 Fan Standart

Power Supply Type (Bộ nguồn

1x250W hot-plug (Platinum efficiency), 100-240V, 50 / 60Hz

Expansion Slots (Khe cắm mở rộng):

4 PCIe 3.0

Optical Drive (Ổ đĩa quang):

OPTIONAL

Weight (Trọng lượng):

 maximum: 13 kg

Product Dimensions (Kích thước W x Dx H):

482.6 mm (Bezel) / 435.4 mm (Body) x 572 x 42.8 mm

Form Factor (Hình dáng bên ngoài):

Rack 1U

Warranty Standard Satement (Bảo hành tiêu chuẩn):

3  năm

Thông số kỹ thuật nâng cấp

Processor Type:

Intel

Processor Family:

2x Intel® Xeon E22xx, core i3-9100,Pentium G5420, Celeron G4930 .

Processor Core Available:

2  to 6  core, depending on model

Processor Cache Installed: ):

4-12 MB L3, depending on processor

Maximum Memory :

128GB  with (4 x32 GB) UDIMMs

Memory Slots:

4  Slot

Memory Type:

UDIMM

Drive Supported:

Up to 8 x 1.8TB 10K 512e HOT PL 2.5' EP

Storage Controller :

Fujitsu PRAID EP580i LP/ EP540i LP/ EP540e LP/ EP520i LP/ EP420i/ EP420i/ EP400i/ CP400i, level: 0, 1, 10, 5, 50, 6, 60, 8 GB, Optional FBU based on LSI SAS3516

Network Controller:

1Gb 4-port Network Controller, depending on model

Remote Management :

Infrastructure Manager (ISM)

System Fan Features (Hệ thống quạt tản nhiệt):

Upto 5 Fan

Expasions Slots:

Up to 6  slots

Operating Systems and Virtualization Software

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See link http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473

Warranty Standard Statement :

Server Warranty includes three years
