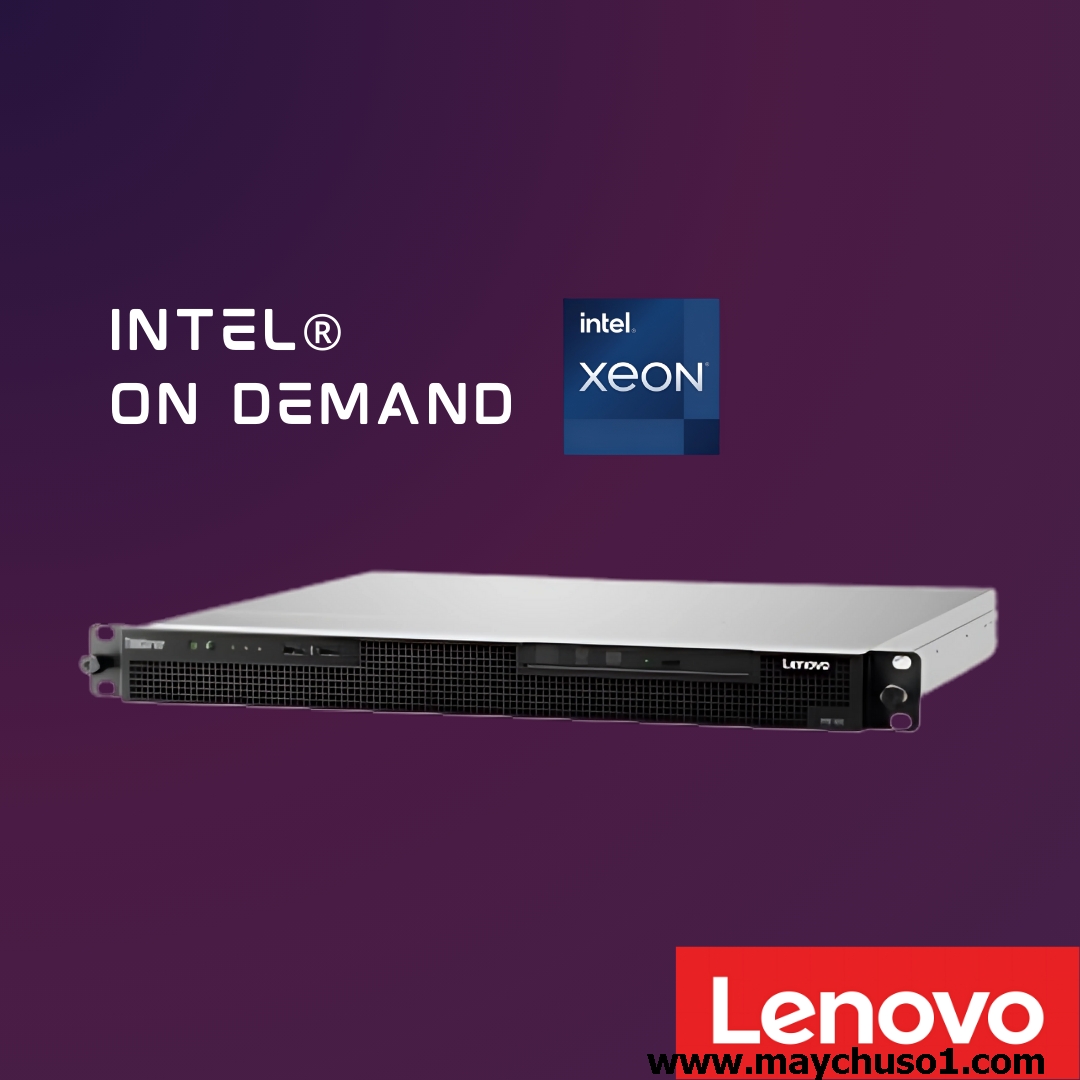

Máy Chủ LENOVO RS160 Xeon E3-1240V5 8GB 4SFF

Processor Name (Tên CPU):

Intel Xeon E3-1240 V5 (TDP 80W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

3.5 GHz

Processor Core Available (Lõi CPU):

4  cores

Processor Cache Installed (Bộ nhớ đệm CPU):

8 MB L3

Standard Memory (Bộ nhớ RAM mặc định):

ThinkSystem 8GB TruDDR4  2133 MHz (2Rx8) UDIMM

Hard Drive Number (Số lượng ổ cứng):

Optional : 4/4 SFF SATA/SAS/SATA Non -HOT-Swap Drive bays

Storage Controller (RAID Card

ServeRAID 121i  (Raid 0, 1, 10)

Network Interface (cổng mạng )

2 x 1/10 GB RJ45

Systems management (cổng  quản lý hệ thống):

1x RJ-45 10/100/1000 Ethernet  systems management port.

System Fan Features (Hệ thống quạt tản nhiệt):

3 Fan Standart

Power Supply Type (Bộ nguồn

One fixed 300 W AC (100 - 240 V) power supply (80 PLUS Gold).

Expansion Slots (Khe cắm mở rộng):

1 PCIe 3.0

Optical Drive (Ổ đĩa quang):

None

Weight (Trọng lượng):

Minimum configuration: 6.2 kg (13.7 lb), maximum: 7.6 kg (16.8 lb)

Product Dimensions (Kích thước W x H x D):

Width: 439 mm (17.3 in.), height: 43 mm (1.7 in.), depth: 411 mm (16.2 in.)

Form Factor (Hình dáng bên ngoài):

1U

Warranty Standard Satement (Bảo hành tiêu chuẩn):

3  năm

Thông số kỹ thuật nâng cấp

Processor Type:

Intel

Processor Family:

2x Intel® Xeon E3-12xx V5, Core i3-6100-6300-6320,Pentium G4400-G4500-G4520

Processor Core Available:

4  core, depending on model

Processor Cache Installed: ):

8 MB L3, depending on processor

Maximum Memory :

64GB  with (4 x16GB) UDIMMs @2133 MHz

Memory Slots:

4  Slot

Memory Type:

ECC  UDIMM

Drive Supported:

12 Gbps Nearline (NL) SAS HDDs up to 2 TB

6 Gbps NL SATA HDDs up to 2 TB

6 Gbps SATA SSDs up to 960 GB

M.2 SSDs : up to 128 GB

Storage Controller :

RAID 0, 1, 10 with RAID 520i. Optional RAID 5 upgrade.

RAID 0, 1, 10, 5 with RAID 720i.

Network Controller:

1Gb 2-port Network Controller, depending on model

Remote Management :

One GbE (10/100/1000 Mbps) RJ-45 port for systems management.

System Fan Features (Hệ thống quạt tản nhiệt):

3 Fan Standart

Expasions Slots:

Up to 1  slots

Operating Systems and Virtualization Software

Microsoft Windows Server 2012, 2012 R2, and 2016; Red Hat Enterprise Linux (RHEL) Server 6 and 7; SUSE Linux Enterprise Server (SLES) 11 and 12; VMware vSphere (ESXi) 6.0.
