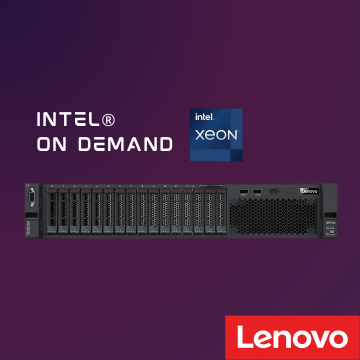

Server Think System LENOVO SR590 8 SFF

Server Think System LENOVO SR590 8SFF

Processor Name (Tên CPU):

Intel Xeon S4210 (85W)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

2.2 GHz

Processor Core Available (Lõi CPU):

10 cores

Processor Cache Installed (Bộ nhớ đệm CPU):

13.75  MB L3

Standard Memory (Bộ nhớ RAM mặc định):

ThinkSystem 16GB TruDDR4 2933 MHz (1Rx8 1.2V)RDIMM

Hard Drive Number (Số lượng ổ cứng):

Optional :8/16  SFF /SAS/SATA HOT-Swap Drive bays

Storage Controller (RAID Card

ServeRAID530-8I  SATA Controller (Raid 0, 1, 10,5,50,)

Network Interface (cổng mạng )

4x 1 or 10 Gigabit sử dụng chip Broadcom

Systems management (cổng  quản lý hệ thống):

1x RJ-45 10/100/1000 Mb Ethernet systems management port.

System Fan Features (Hệ thống quạt tản nhiệt):

3  Fan Standart

Power Supply Type (Bộ nguồn

1x ThinkSystem 750W (230/115V) Platinum Hot-Swap Power S`upply

Expansion Slots (Khe cắm mở rộng):

5 PCIe 3.0

Optical Drive (Ổ đĩa quang):

None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).

Weight (Trọng lượng):

Minimum configuration: 19 kg (41.9 lb), maximum: 32 kg (70.5 lb)

Product Dimensions (Kích thước W x H x D):

Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.)

Form Factor (Hình dáng bên ngoài):

2U

Warranty Standard Satement (Bảo hành tiêu chuẩn):

3  năm

Thông tin chi tiết ThinkSystem SR590, vui lòng liên hệ bộ phận bán hàng NMS để được tư vấn !

Thông số kỹ thuật nâng cấp

Processor Type:

Intel

Processor Family:

2x Intel® Xeon Platium 82xx,Gold 52xx-62xx, Silver 42xx, Bronze 32xx

Processor Core Available:

6 to 40  core, depending on model

Processor Cache Installed: ):

8.25-38.5  MB L3, depending on processor

Maximum Memory :

1TB  with (12 x64GB) RDIMM @2933 MT/s

Memory Slots:

12  Slot

Memory Type:

HPE DDR4 SmartMemory : RDIMM or LRDIMM

Drive Supported:

45.76TB using 16x 15.36TB 2.5-inch SAS SSDs

32TB using 4x 8TB 2.5-inch NVMe SSDs

38.4TB using 16x 2.4TB 2.5-inch HDDs

Storage Controller :

ThinkSystem  RAID 530-8i,730 1Gb-8i(raid 0,1,5,10,50),Raid 730-8i 2Gb Flash-930-8i 2Gb Flash-930-16i 4GB or 8GB Plash ,930-24i 4GB Plash  (0,1,5,10,50,60) PCIe 6Gb Adapter

ThinkSystem 12GBps SAS/6 Gbps Sata non-Raid :430-8i or 16i HBA
NVMe PCIe:810-4p-1610-4p,1610-8P Switch Adapter

Network Controller:

1Gb 4-port Network Controller, depending on model

Remote Management :

XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.

System Fan Features (Hệ thống quạt tản nhiệt):

Three (one processor) or four (two processors) non-hot-swap system fans with N+1 redundancy.

Expasions Slots:

Up to six slots

Operating Systems and Virtualization Software

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating systems section for specifics.

Warranty Standard Statement :

Server Warranty includes three years

Thông tin chi tiết ThinkSystem SR590, vui lòng liên hệ bộ phận bán hàng NMS để được tư vấn !
