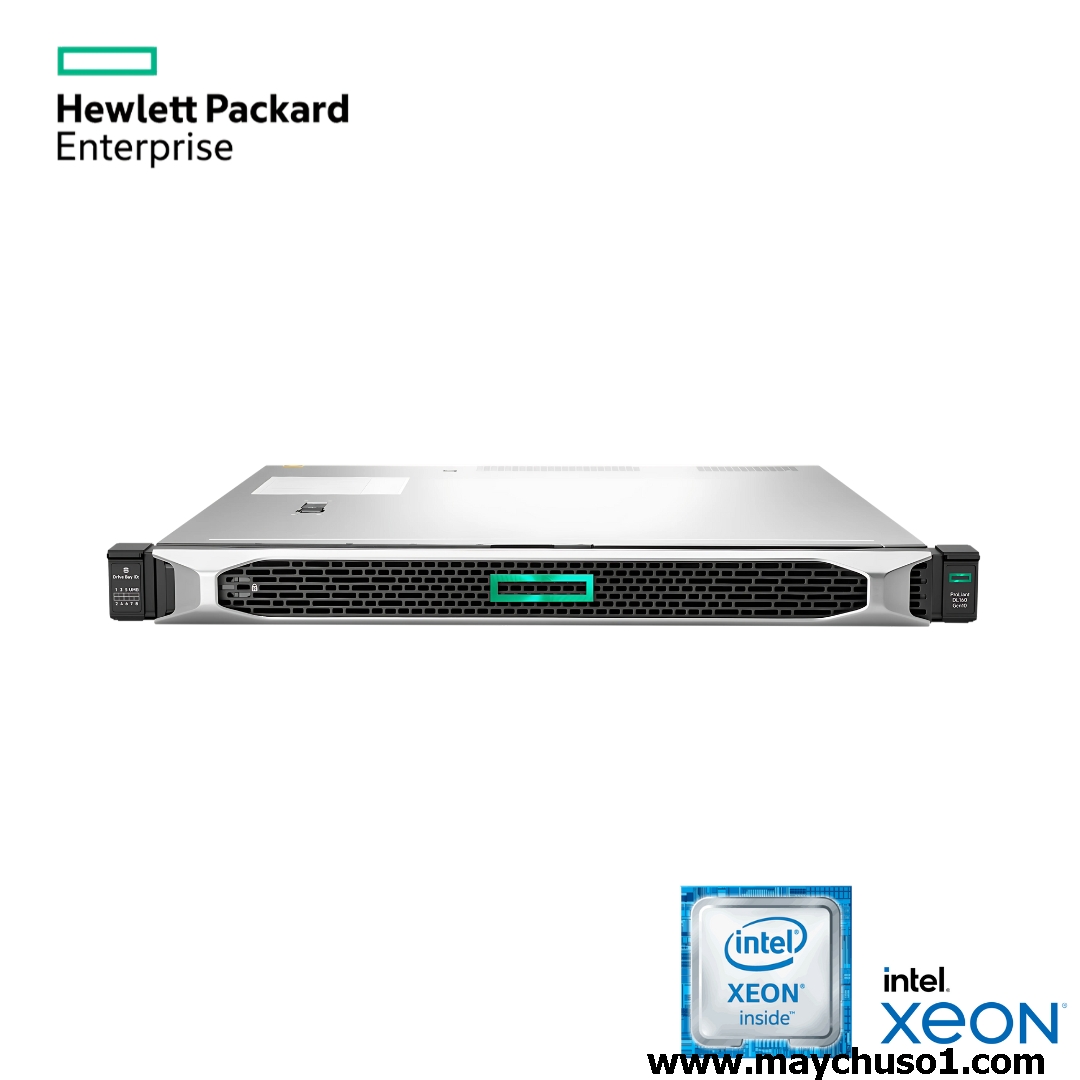

Máy Chủ HPE DL160 G10 S4110 8SFF Server

HPE ProLiant DL160 Gen10 8SFF Intel S4110

Processor(Tên CPU):

Intel Xeon 4110(85w)

Processor Number (Số lượng CPU):

1

Processor Speed (Tốc độ xử lý CPU):

2.1GHz

Processor Core Available (Lõi CPU):

8 Core

Processor Cache Installed (Bộ nhớ đệm CPU):

11 MB L3 Cache

Standard Memory (Bộ nhớ RAM mặc định):

1x  HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

Hard Drive Number (Số lượng ổ cứng):

OPTIONAL- 8 SFF hot plug drives supported SATA/SAS/SSD)

Storage Controller (RAID Card):

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular LH Controller

Network Controller:

HPE embedded 1 GbE Ethernet adapter 2-ports per controller and/or Option HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter.

Remote Management Software (Phần mềm quản lý hệ thống):

iLO Management (standard)

System Fan Features (Hệ thống quạt tản nhiệt):

3 non hot plug, non-redundant

Power Supply Type (Bộ nguồn)

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Expansion Slots (Khe cắm mở rộng):

2 PCIe 3.0 Slot

Optical Drive (Ổ đĩa quang):

Not Available

Weight (Trọng lượng):

30.69 lb minimum 34.69 lb  maximum

11.65 kgminimum 15.74kgmaximum

Product Dimensions (Kích thước W x D x H):

1.69 x 17.11 x 24.21 in

4.29 x 43.46 x 61.49cm

Form Factor (Hình dáng bên ngoài):

1U

Warranty Standard Satement (Bảo hành tiêu  chuẩn):

4years

Quý khách đặt hàng
Vui lòng liên hệ Cty CP Công Nghệ NMS®
Hotline: 028.7100.8600 - Email: sales@nmsvn.com

Thông số Kỹ Thuật Nâng Cấp

Processor Type:

Intel

Processor Family:

Intel Xeon Silver 41xx, 42xx, Bronze 31xx, 32xx

Processor Core Available:

 4 or 6 or 8 or 10 or 12 core, depending on model

Processor Cache Installed: ):

8.25 - 35.75  MB L3, depending on processor

Maximum Memory :

1 TB (16 x 64 GB UDIMM @2400- 2666 -2933 MT/s)

Memory Slots:

16 slots

Memory Type:

HPE DDR4 Registered DIMMs (RDIMMs))

Drive Supported:

76.8TB ((8+2) x 7.6 ) SFF SAS/SATA/SSD) , Internal Dual M.2 Kit

Storage Controller :

HPE Smart Array E208i-a(raid :01,5,10) SR G10 LH Controller and/or HPE Smart Array P408i-a (Support raid :0,1,5,6,10,50,60)SR G10 LH Controller, depending on model

Network Controller:

2 x 1 GbE ports embedded on board with optional FlexibleLOM

Remote Management :

 HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional - HPE iLO Advanced, and HPE OneView Advanced (require licenses)

Operating Systems and Virtualization Software:

Windows Server 2019- 2016,VMware vSphere 6.7- 6.5 U3 -7.0, Red Hat Enterprise Linux (RHEL) 8.0 - 7.6, SUSE Linux nterprise Server (SLES) 15 and 12 SP3

Warranty Standard Statement :

Server Warranty includes three years
