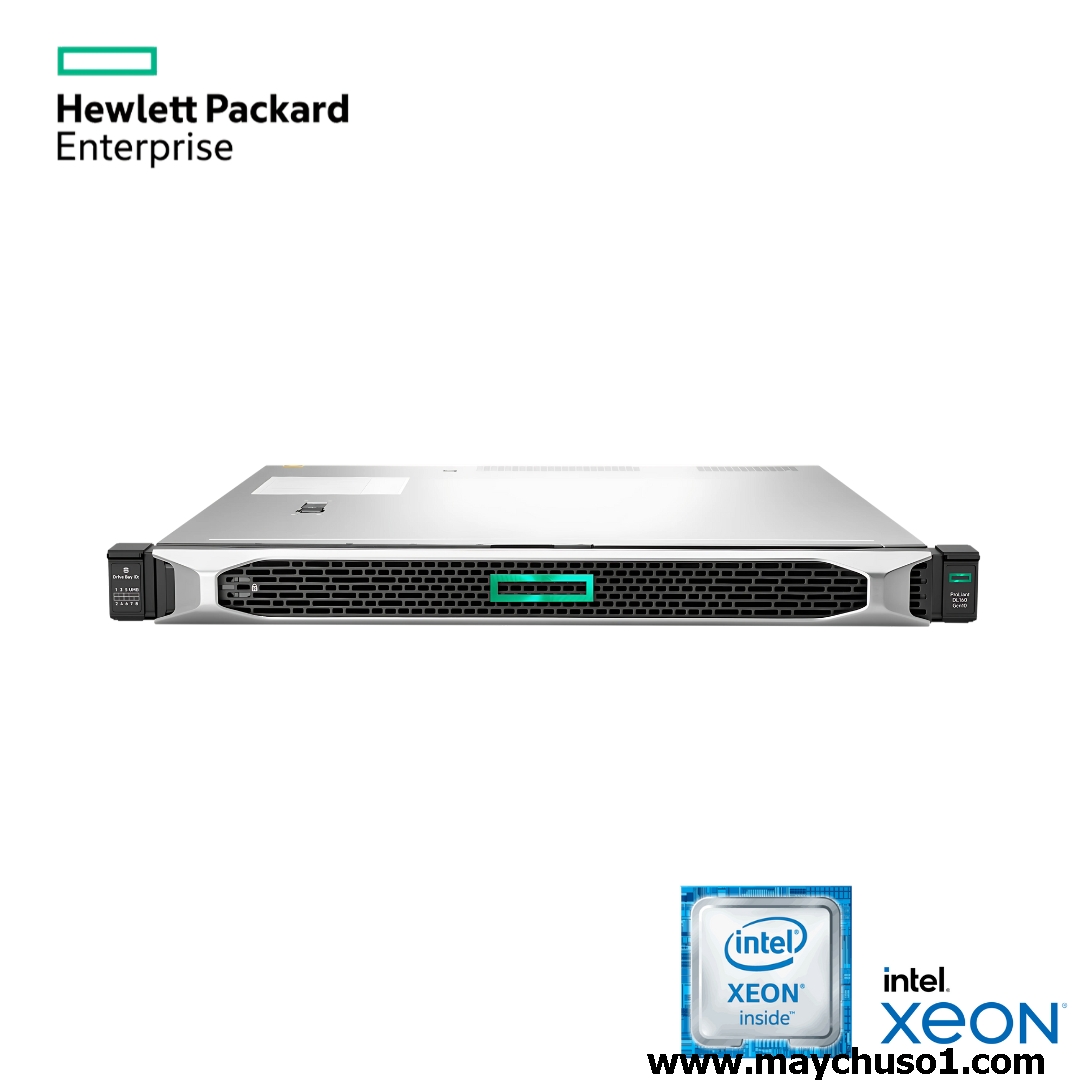

HPE PROLIANT DL160 G10 4LFF S4210R CTO SERVER
Processor Name (Tên CPU):	Intel Xeon Scalable Silver 4210R, TDP 100 W
Processor Number (Số lượng CPU):	1
Processor Speed (Tốc độ xử lý CPU):	2.40 GHz - 3.20 GHz Turbo Boost
Processor Core Available (Lõi CPU):	10 cores - 20 threads
Processor Cache Installed (Bộ nhớ đệm CPU):	13.75 MB L3
Standard Memory (Bộ nhớ RAM mặc định):	HPE 16GB (1x16GB) 1Rx4 PC4-2933Y-R CAS-21-21-21 Registered Smart Memory Kit
Hard Drive Number (Số lượng ổ cứng):	optional – 4LFF drives supported
Storage Controller (RAID Card)	HPE Smart Array E208i-a SR Gen10 Controller (8 Internal Lanes/No Cache). RAID levels 0, 1, 5, 10 and Software Defined Storage solutions. HPE SSD Smart Path supporting 12Gbps SAS - 6Gbps SATA and PCIe 3.0 HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
Network Controller:	HPE Ethernet 1Gb 4-port 366FLR Adapter
Remote Management Software (Phần mềm quản lý hệ thống):	* Standard (Bản tiêu chuẩn): HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) * Advanced (Bản nâng cao): Optional - HPE iLO Advanced and HPE OneView Advanced (requires licenses)
System Fan Features (Hệ thống quạt tản nhiệt):	Standard – fan types included
Power Supply Type (Bộ nguồn)	2x HPE 500W Flex Slot Platinum hot-plug power supply
Expansion Slots (Khe cắm mở rộng):	2 PCIe 3.0
Optical Drive (Ổ đĩa quang):	Not Available
Weight (Trọng lượng):	32.06lb minimum 14.76kg minimum
Product Dimensions (Kích thước W x D x H):	17.54 x 28.75 x 3.44 in 44.55 x 73.03 x 8.74 cm
Form Factor (Hình dáng bên ngoài):	Rack-1U
Warranty Standard Satement (Bảo hành tiêu chuẩn):	4 năm

Quý khách đặt hàng
Vui lòng liên hệ Cty CP Công Nghệ NMS®
Hotline: 028.7100.8600 - Email: sales@nmsvn.com

Thông số kỹ thuật nâng cấp
Processor Type:	Intel
Processor Family:	Intel Xeon Scalable 8100/8200 6100/6200 5100/5200 4100/4200 3100/3200 series
Processor Core Available:	4 to 28 core, depending on model
Processor Cache Installed: ):	8.25 - 38.50 MB L3, depending on processor
Maximum Memory :	1.54TB with 24 x 64GB RDIMM Bus 2933 MT/s, 3.0TB with 24 x 128GB LRDIMM Bus 2933 MT/s
Memory Slots: 4 slots :	24 Slot
Memory Type:	HPE DDR4 Smart Memory and HPE Persistent Memory, depending on model
Drive Supported:	8 or 12 LFF SAS/SATA/SSD and 8/ 10/ 16/ 18 or 24 SAS/SATA/SSD
Storage Controller :	HPE Smart Array S100i(raid :0,1,5,10) SR Gen10 SW RAID and/or HPE Smart Array E208i-a(raid :01,5,10) SR G10 LH Controller and/or HPE Smart Array P408i-a(0,1,5,10,50,60) HPE Smart Array P816i-a(0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 Advanced Data Mirroring)
Network Controller:	Embedded 4 x 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model
Remote Management :	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional - HPE iLO Advanced, and HPE OneView Advanced (require licenses)
System Fan Features (Hệ thống quạt tản nhiệt):	Hot-Plug redundant standard
Expasions Slots:	3, for detailed description refer to QuickSpecs (quickspecs).
Operating Systems and Virtualization Software	Windows Server 2019- 2016,VMware vSphere 6.7- 6.5 U3 -7.0, Red Hat Enterprise Linux (RHEL) 8.0 - 7.6, SUSE Linux nterprise Server (SLES) 15 and 12 SP3,Clear OS 7.6,Clear VM 2.0
Warranty Standard Statement :	Server Warranty includes three years
Quý khách đặt hàng Vui lòng liên hệ Cty CP Công Nghệ NMS® Hotline: 028.7100.8600 - Email: sales@nmsvn.com
