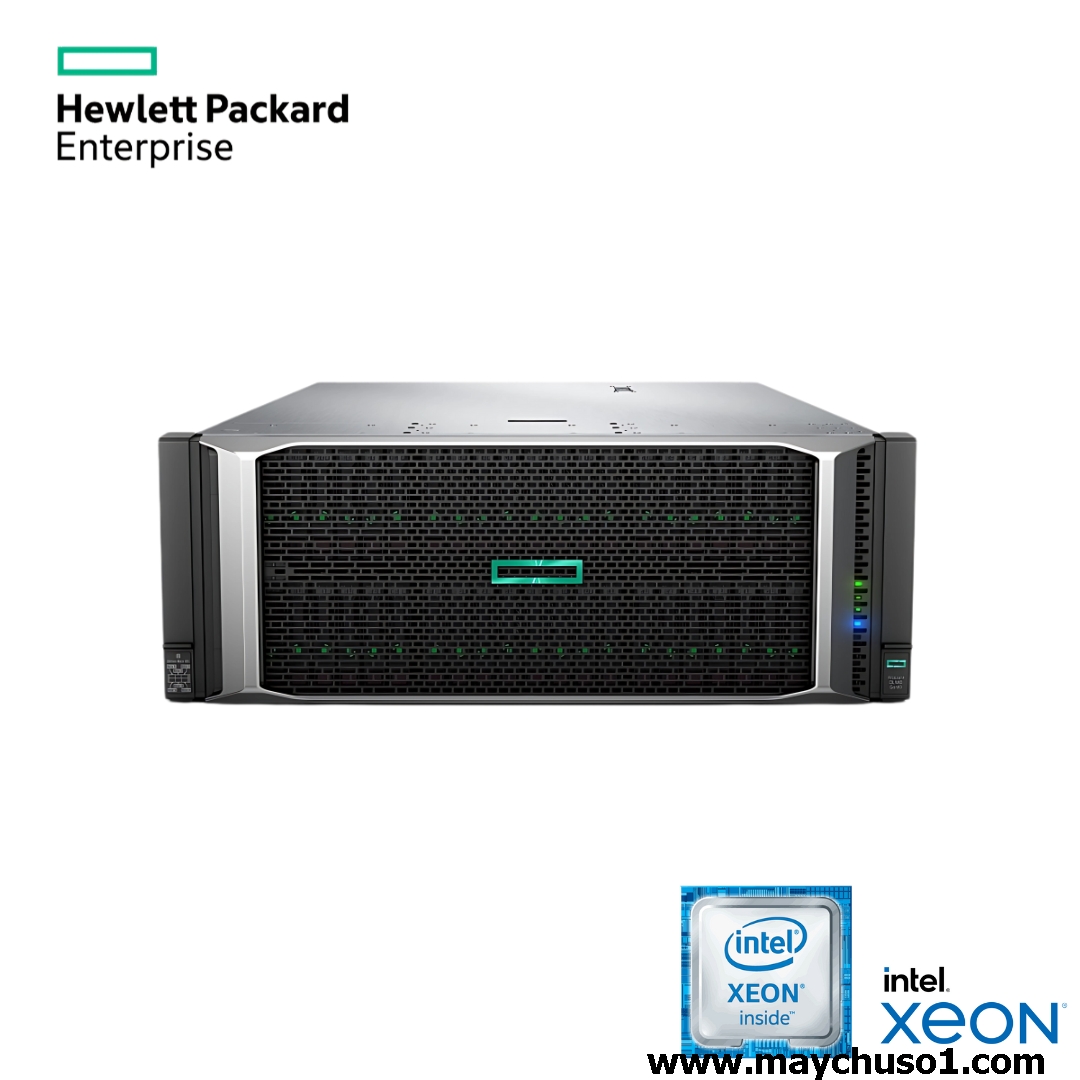

Máy Chủ HPE ProLiant DL580 Gen10 8SFF-Gold 5118

HPE PROLIANT HPE DL580 GEN10 5118

Processor Name (Tên CPU): Intel Xeon Gold 5118(105W)

Processor Number (Số lượng CPU): 2

Processor Speed (Tốc độ xử lý CPU): 2.3GHz

Processor Core Available (Lõi CPU): 12 cores

Processor Cache Installed (Bộ nhớ đệm CPU): 16.5 MB L3

Memory (Bộ nhớ RAM mặc định): 4x  HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

Micro SD Slot : 1 Micro SD

Remote Management Software (Phần mềm quản lý hệ thống):
* Standard (Bản tiêu chuẩn): HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
* Advanced (Bản nâng cao): Optional - HPE iLO Advanced and HPE OneView Advanced (requires licenses)

System Fan Features (Hệ thống quạt tản nhiệt): 12 hot plug fans, n+1 redundant

Power Supply Type (Bộ nguồn): 2x HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Expansion Slots (Khe cắm mở rộng): 3 PCIe 3.0

Storage Controller (RAID Card): HPE Smart Array P824i-p SR Gen10 (raid 0,1,5,10,50,60) (24 Internal Lanes/4GB Cache/CacheCade) 12G SAS PCIe Controller12G SAS Modular Controller and HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

Hard Drive Number (Số lượng ổ cứng): optional – 8 x SFF SAS/SATA/SSD hot plug (8/48) (Optional: 20 NVMe)

Optical Drive (Ổ đĩa quang): Not Available

Form Factor (Hình dáng bên ngoài): 2U

Weight (Trọng lượng ): 28.12 kg / 62 lb Minimum, 51.71 Kg /114 lb Maximum

Product Dimensions (Kích thước H x W x D ): 17.48cm x 44.55cm x 75.18cm 6.88 x 17.54 x 29.60 in

Warranty Standard Satement (Bảo hành tiêu chuẩn): 3 year

Thông tin chi tiết HPE ProLiant DL380 G10 Server, vui lòng liên hệ bộ phận bán hàng NMS để được tư vấn  !

Thông số kỹ thuật nâng cấp
Processor Type: intel
Processor Family: Intel Xeon 81xx- 82xx-61xx-62xx-51xx-52xx

Processor Core Available: 4 to 28 core, depending on model
Processor Cache Installed: 13.75 to 38.5   MB L3 , depending on processor
Maximum Memory: 6TB with 48 x128GB LRDIMM Bus 2933 MT/s, 4 TB with 24 x 512GB HPE Persistent Memory.
Memory Slots: 48slots
Memory Type: HPE DDR4 Smart Memory and HPE Persistent Memory, depending on model
Drive Supported: 8 x SFF SAS/SATA/SSD hot plug (8/48) (Optional: 20 NVMe)

Network Controller: HPE Ethernet 1Gb 4-port 331i Adapter or optional HPE FlexibleLOM, depending on model
Remote Management Software: Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download) Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced

System Fan Features:  12 hot plug fans, n+1 redundant
Expasions Slots: 3, for detailed description refer to QuickSpecs (quickspecs)
Storage Controller:  HPE Smart Array P408i-a and/or HPE Smart Array P816i-a and/or HPE Smart Array E208i-a, depending on model

Operating Systems and Virtualization Software Support: Windows Server 2016-2019,VMware ESXi 6.5 U3 -6.7 U3, Red Hat Enterprise Linux (RHEL) 7.6, SUSE Linux Enterprise Server (SLES) 12 SP4- 15 SP1, Citrix XenServer
Warranty Standard Statement: Server Warranty includes three years

Thông tin chi tiết HPE ProLiant DL380 G10 Server, vui lòng liên hệ bộ phận bán hàng NMS để được tư vấn  !
